Self-described “beginner mad scientist” Gabe Emerson has put collectively a cyberdeck design for “authorized satellite tv for pc hacking,” dubbed the Spacedeck — and cramming an entire host of helpful radio instruments right into a single luggable unit.
“Since I’ve been doing a whole lot of stuff with outdated satellite tv for pc dishes recently, I figured it was time for a extra organized, self-contained management and receiver setup,” Emerson explains. “The result’s [the Spacedeck], constructed from a surplus police automotive pc, digital satellite tv for pc meter, varied software-defined radio stuff, and almost all the contents of a number of spare elements bins.”
Emerson’s plan did not begin with salvage, although: the venture was initially designed round extra trendy {hardware}, together with a compact laptop computer with solid-state storage, a DisplayLink display screen, and extra — however, the maker explains, nothing labored fairly the way in which he needed, resulting in a choice to reject modernity and construct round tried-and-tested classics as an alternative.
“Every little thing within the present cyberdeck model is [Microsoft] Home windows XP period [2001-2008],” Emerson explains. “I am really utilizing Q4OS Linux, but it surely appears to be like and feels identical to Home windows XP. The entire thing most likely value beneath $50, as most of it was stuff I already had mendacity round. I did spend the massive bucks on a brand new 60 per cent keyboard and a pair [of] battery packs.”

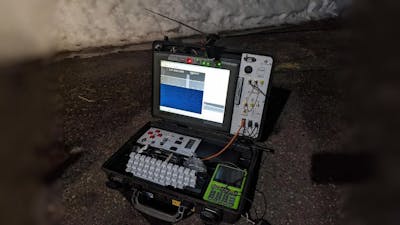

Contained in the rugged housing is a salved all-in-one touchscreen pc, initially constructed to be used in police autos, linked to an RTL-SDR dongle for software-defined-radio workloads. There are a selection of Wi-Fi modules, quite a few filters and amps, and a devoted satellite tv for pc meter, plus {hardware} for dealing with satellite tv for pc dishes together with a Low Noise Block (LNB) energy injector and an alignment management unit for powered satellite tv for pc dish pointers.
Module panels present the whole lot from enlargement to dish management. (📷: Gabe Emerson)
“The system is pretty modular and expandable, with most main parts merely caught in with Velcro tape,” Emerson says. “If I need to swap modules for a unique experiment, I can simply pop them out and substitute with one thing else. A lot of the ports and controls are uncovered in two custom-made panels. A buddy requested if I have been getting these laser lower… nope, simply plexiglass on the desk noticed, print the structure on a vinyl sticker, and slap em collectively!”
Emerson’s full write-up is accessible on his web site.
