Shoe insole customization could be very widespread amongst athletes and people with foot issues.Customization includes tailoring the insole to the particular wants of the wearer’s foot, leading to elevated consolation and help. This has been completed for a wide range of causes, together with to enhance efficiency, scale back ache, and stop accidents.
Customized insoles may help improve stability and scale back impression forces, which may result in higher stability, improved endurance, and diminished threat of damage. As well as, athletes with flat toes or excessive arches can profit from insoles that present extra help to their toes. These with plantar fasciitis, arthritis, or bunions may also get some reduction from their signs by decreasing stress on the affected space and offering extra cushioning the place it’s wanted most.
Getting a personalized pair of insoles is simpler mentioned than completed, nonetheless. It requires a visit to a specialist, the place the person should stroll barefoot on a pressure-sensitive mat to create a personalized stress profile of their toes. This course of may be time consuming and costly, which prevents many from getting the assistance that they want. Furthermore, measurements are captured underneath synthetic situations, not throughout regular actions, so the tip end result can usually be suboptimal, requiring that the affected person return for extra visits to refine the insole design.

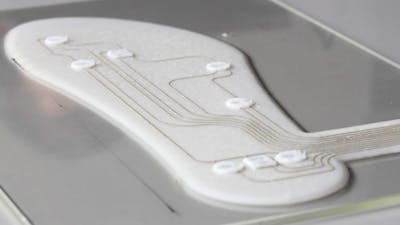

The manufacturing course of (📷: M. Binelli et al.)
That journey to the specialist’s workplace could quickly get replaced by slipping a pair of instrumented insoles into your footwear, due to the efforts of a analysis crew at ETH Zürich in Switzerland. They’ve developed a way that permits them to 3D print insoles with embedded stress sensors. These units can acquire information from the wearer as they go about their regular, on a regular basis actions.
A single 3D printer is used to create the pressure-sensitive insole. First, the bottom of the insole is printed in layers of silicone blended with cellulose nanoparticles. On high of this, a conductive ink, containing silver, is used to print {the electrical} traces. Lastly, carbon black is printed on high of the traces in strategic places to behave because the stress sensors. Remedies with scorching plasma are used alongside the way in which to make sure correct adhesion between the completely different layers. A remaining layer of silicone is printed excessive to encase and shield the digital elements.
The carbon black types easy piezoelectric stress sensors that may measure regular and shear forces by changing stress into electrical alerts. These alerts journey to an edge connector on the facet of the shoe, the place the measurements may be captured and analyzed by exterior computing units through a cable tether.
Sooner or later, the crew is planning to combine wi-fi connectivity into the system in order that they’ll lower the wire and permit the wearer to have an much more pure expertise. Given the current availability of small, cheap microcontrollers with Wi-Fi or Bluetooth transceivers, this shouldn’t be an particularly difficult purpose to realize.
Past becoming an individual with customized insoles, this pressure-sensitive insole may also decide if the wearer is strolling, operating, climbing stairs, carrying a heavy load, or doing any variety of different actions based mostly on the stress profile noticed. Maybe this system will finally be paired with a machine studying algorithm to investigate the stress profile and unlock all kinds of fascinating, new functionalities.
